Product Description:
The DFB Laser Source is an advanced and highly reliable light source designed for various optical applications requiring exceptional performance and stability. Engineered with precision, this DFB Laser Source operates efficiently within a temperature range of 0 to +40 degrees Celsius, making it suitable for a wide array of working environments. Its robust design ensures consistent operation without compromising performance even under fluctuating ambient conditions.
One of the standout features of this DFB Laser Source is its outstanding output power stability. Over an extended period of 8 hours, the output power stability remains within an impressive tolerance of ≤±0.05 dB, ensuring that the laser maintains a consistent intensity for reliable and accurate measurements or transmissions. Moreover, the short-term stability is even more remarkable, with output power variation limited to ≤±0.005 dB within 15 minutes. This level of stability is crucial for sensitive applications where even minor fluctuations can impact the overall system performance.
Technical Parameters:
| Model # |
U8120 |
U8130 |
| Device Package |
TO |
Butterfly |
| Optional Wavelength |
850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/
1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.
|
| Wavelength Accuracy |
± 3 nm |
± 2 nm(±1nm Customizable) |
| Output Power |
≥1.0mW |
≥10.0mW |
| Connector Type |
FC/APC( Other Adaptor Can Be Customized) |
| Bandwidth@3 dB |
＜ 0.1 nm |
| Bandwidth@20 dB |
＜0.5 nm |
| Output Power Stability within 15mins |
≤±0.01 dB |
≤±0.005 dB |
| Output Power Stability within 8 hrs |
≤±0.05 dB |
| SMSR |
＞ 35 dB (Excluding850/980nm) |
＞ 40 dB |
| Operation Temperature |
0～ +40 ℃ |
| Storage Temperature |
-30～+80 ℃ |
| 尺寸 Dimensions |
235 mm W, 55 mm H, 320 mm D |
| Weight |
3.0 kg |
Applications:

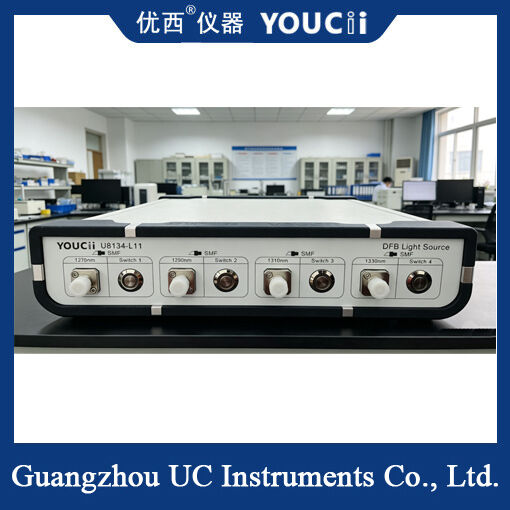

Typical application occasions for the YOUCii U8134 DFB Laser Source include optical communication test equipment, where it serves as a reliable light source for testing and calibrating fiber optic components. It is also widely used in fiber optic sensor systems for structural health monitoring, environmental sensing, and industrial automation, where accurate and stable laser emission is necessary for detecting physical changes.
Overall, the YOUCii U8134 DFB Laser Source combines high performance, customization options, and reliable operation, making it an excellent choice for a broad range of occasions and scenarios that demand precise, stable, and efficient laser light emission.
