Product Description:

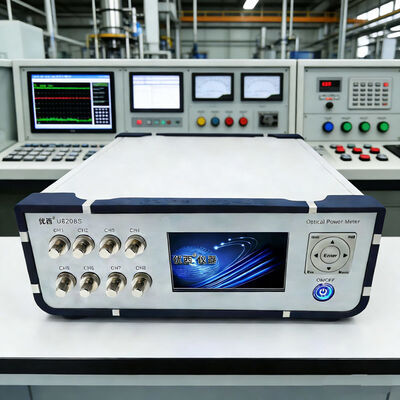

The U8208S optical power meter combines high precision, versatility, and durability, with a compact design. Its wide power range and wavelength range capabilities, along with flexible calibration options and compatibility with various connector types, make it an indispensable tool for anyone engaged in fiber technology work. The clear liquid crystal display and wide operating temperature range further enhance its usability and performance, ensuring accurate and efficient optical power measurement in any environment.
Technical specification
| Model # |
U8208S |
| Number of Channels |
8 |
| Power Range |
+20 ~ -60dBm |
| Wavelength Range |
850 ~ 1700 nm |
| Calibration Wavelength |
850/980/1310/1490/1550/1610 nm |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
|
Absolute
Uncertainty (accuracy) at reference condition
|
± 4% (1200 nm ~ 1610 nm) |
|
Relative
Uncertainty (accuracy) at reference condition
|
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss |
＞ 40 dB |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
340 mm W, 105 mm H, 320 mm D |
| Weight |
3.0 kg |
This optical power meter is highly suitable for use by telecommunications companies, data centers, and network installers. They require accurate and efficient testing of fiber networks. The device supports various connector types, including FC, APC, and LC, enabling it to be compatible with various fiber cables and equipment. This flexibility makes the YOUCii U8208S an essential tool for verifying the performance and integrity of fiber links during installation, troubleshooting, and routine maintenance.
Furthermore, the YOUCii U8208S is suitable for educational institutions and research laboratories, as in these settings, precise optical power measurement is crucial for experimental setups and training in fiber technology. Its sturdy design and wide range of power measurement capabilities also make it a reliable tool for quality control in the production of fiber components.
In summary, the YOUCii U8208S optical power meter is suitable for a variety of professional application fields, such as network installation, maintenance, fault detection and research, etc. It features a wide power range, echo loss measurement, multi-interface compatibility, and user-friendly display functions, making it an indispensable tool for ensuring the efficiency and reliability of optical fiber communication systems.
